2011

Before pic of filter w/ grass growing out of it (West Side)
Grass growing (North Side)
Depth of sludge when I began
12" trash pump w/ 200ft of 4-5" fire hoses pumping west

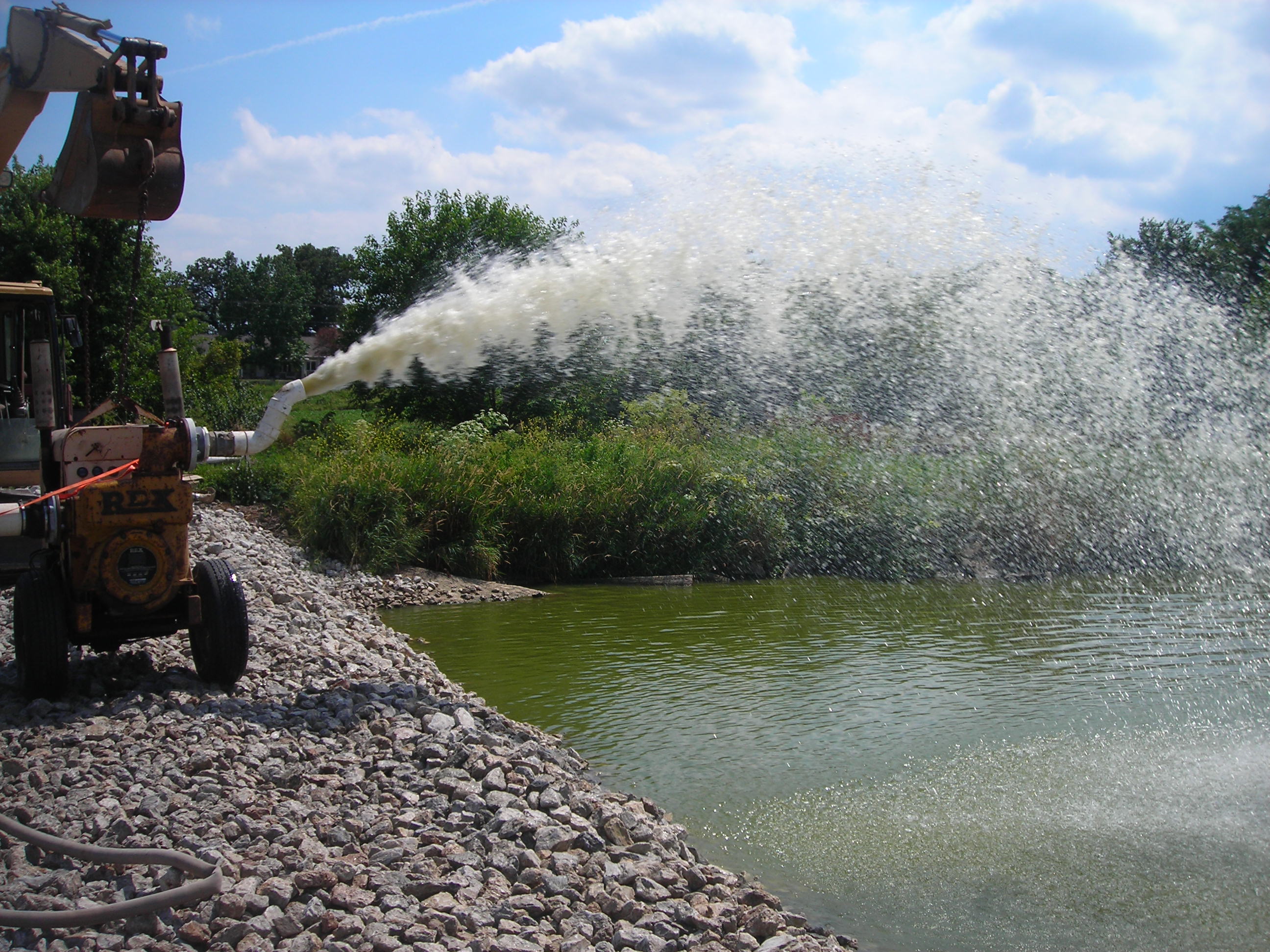

shows the discharge

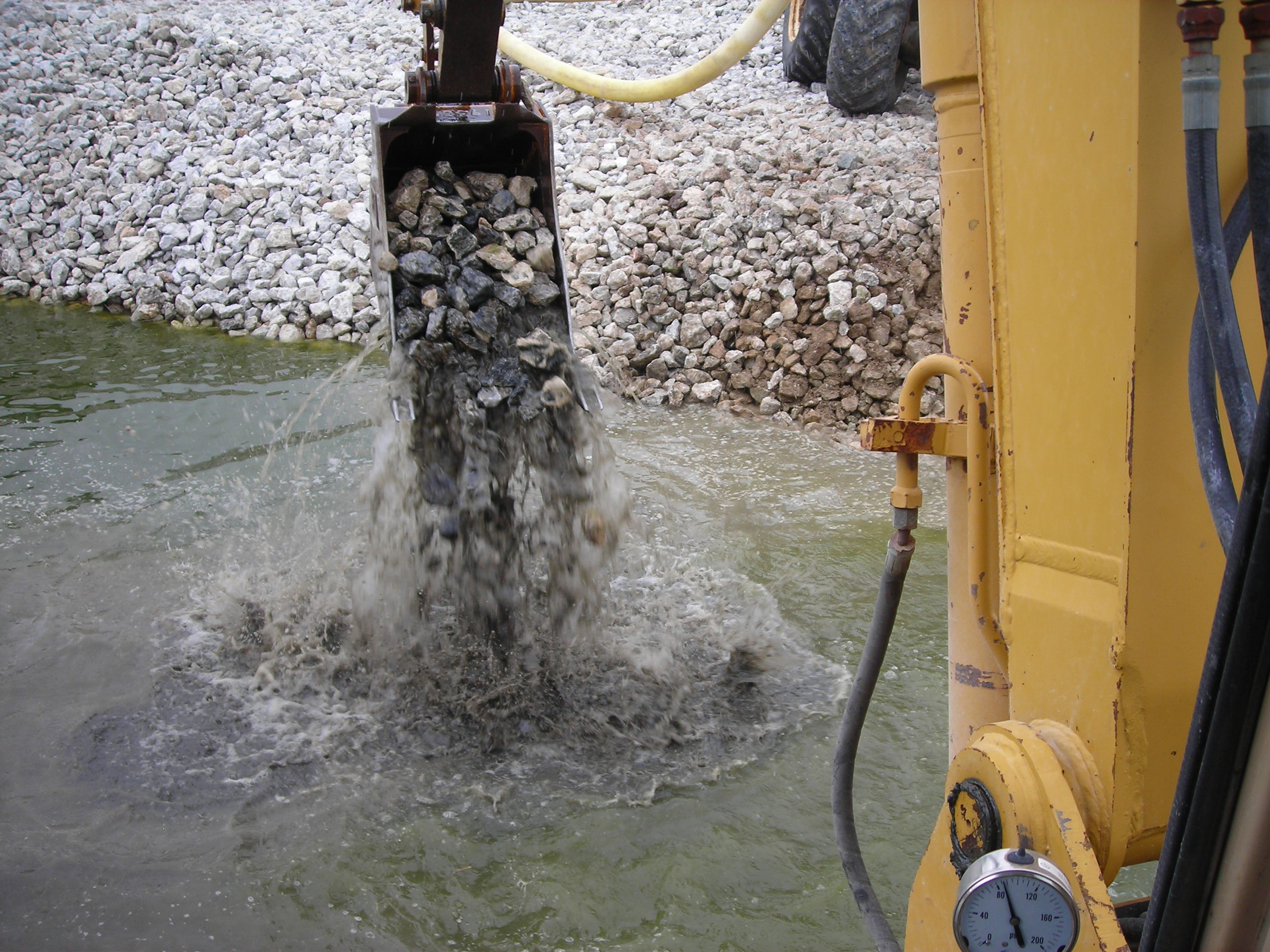

Used loader bucket & excavator to remove grass

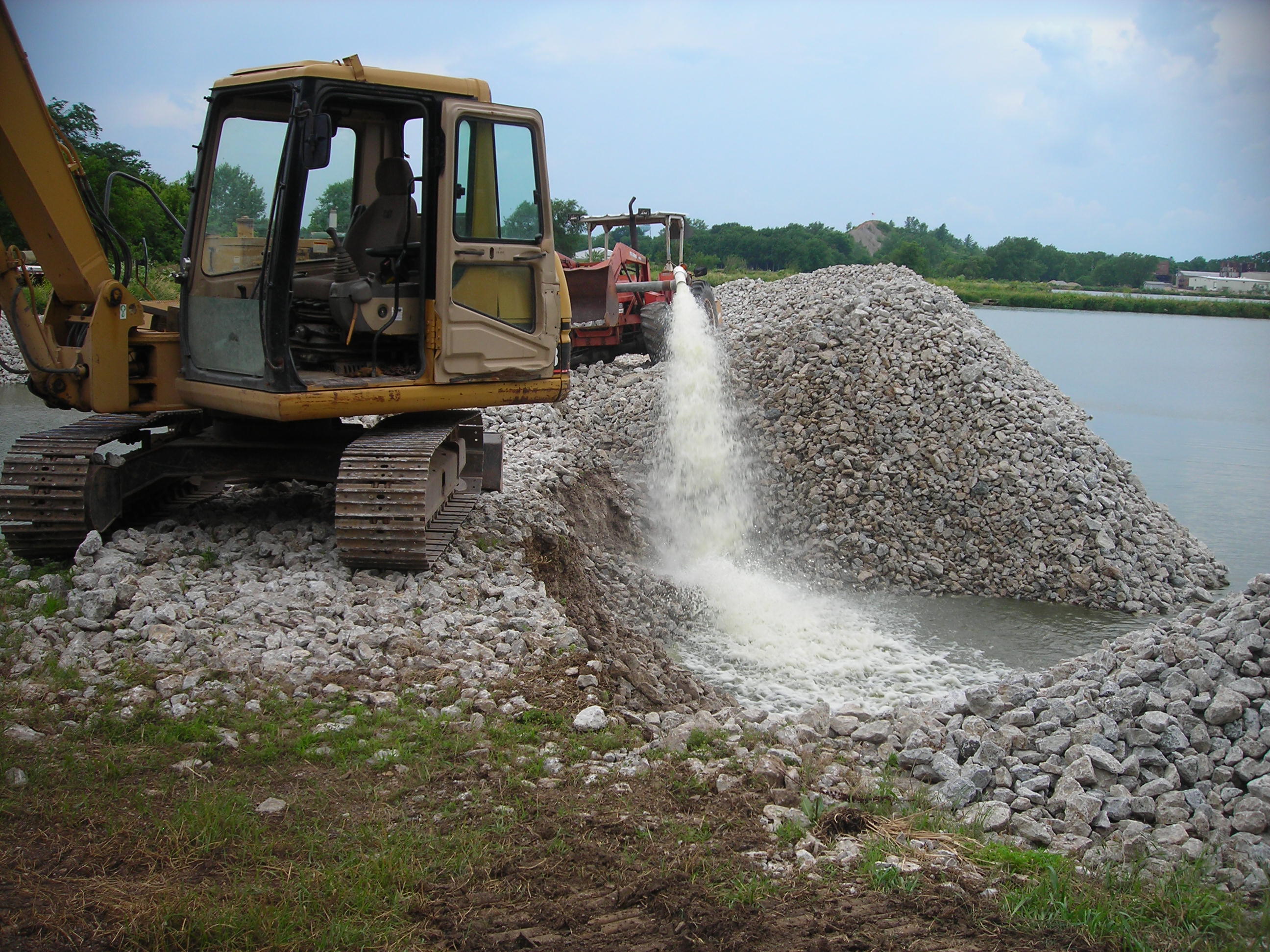

Windrowing the rocks & washing the dirt out
Sludge in the edge of the rock filter

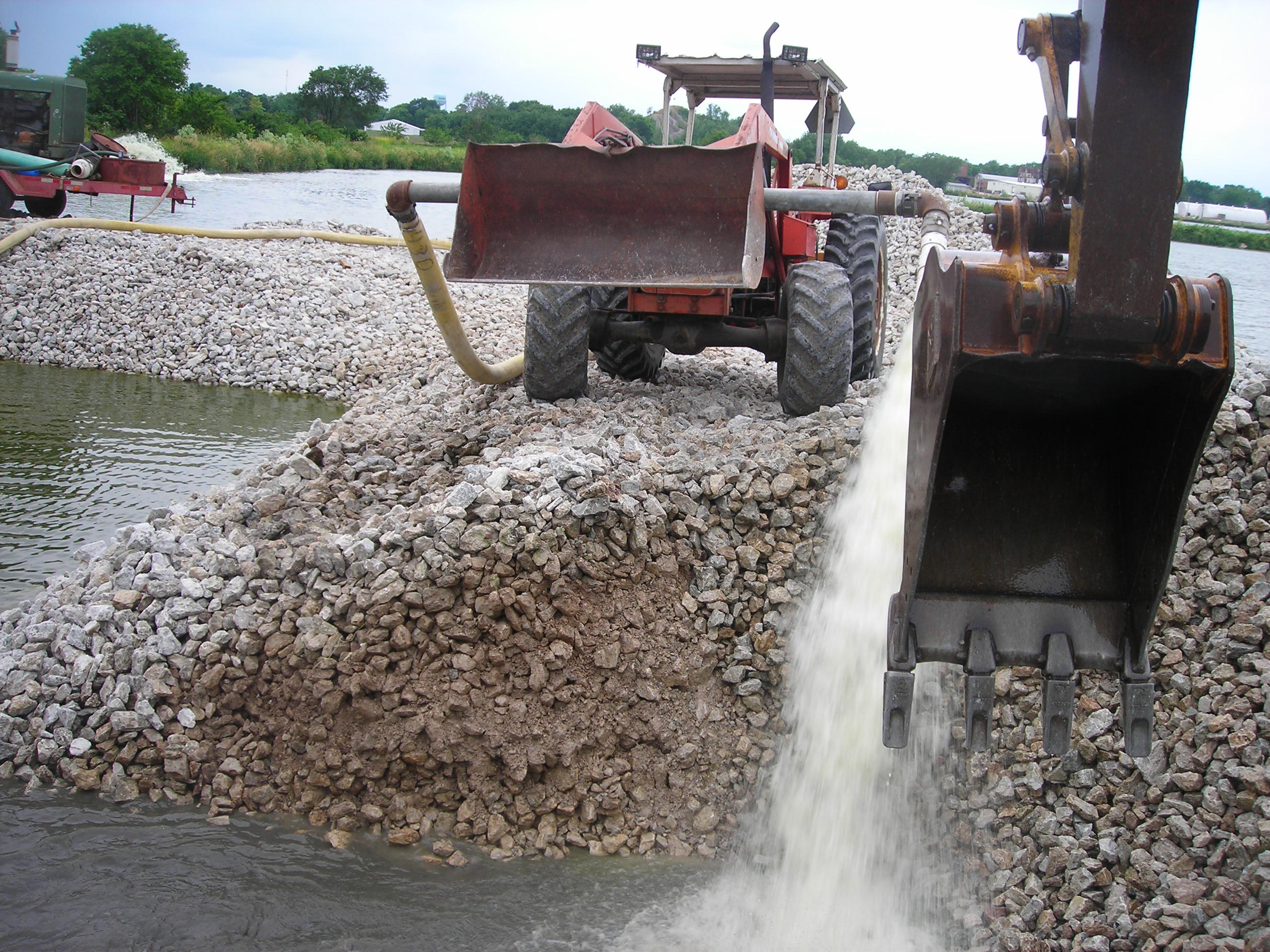

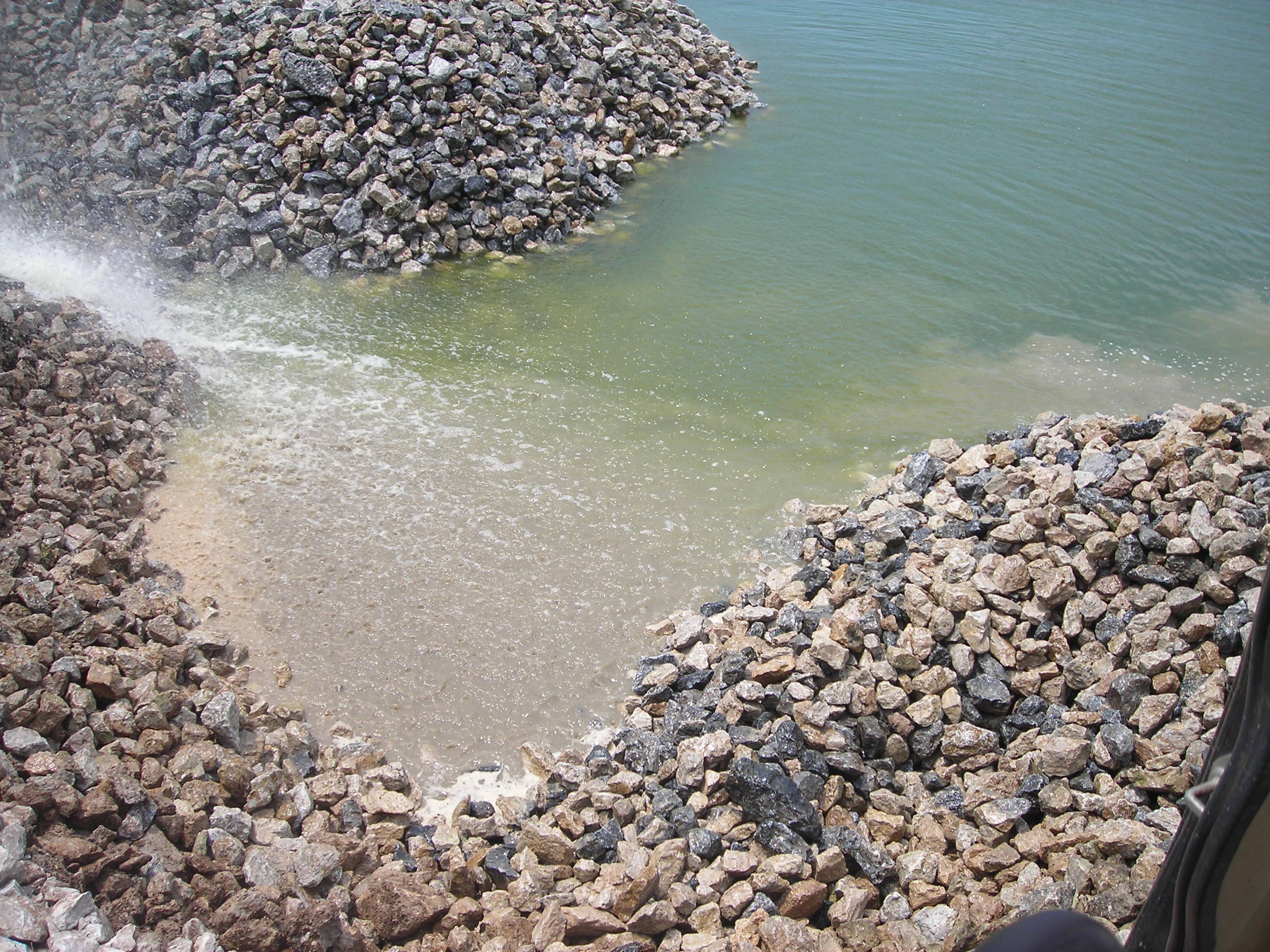

Washing dirt out of the filter
Washing dirt out of the filter (Notice the dirt in the rocks)

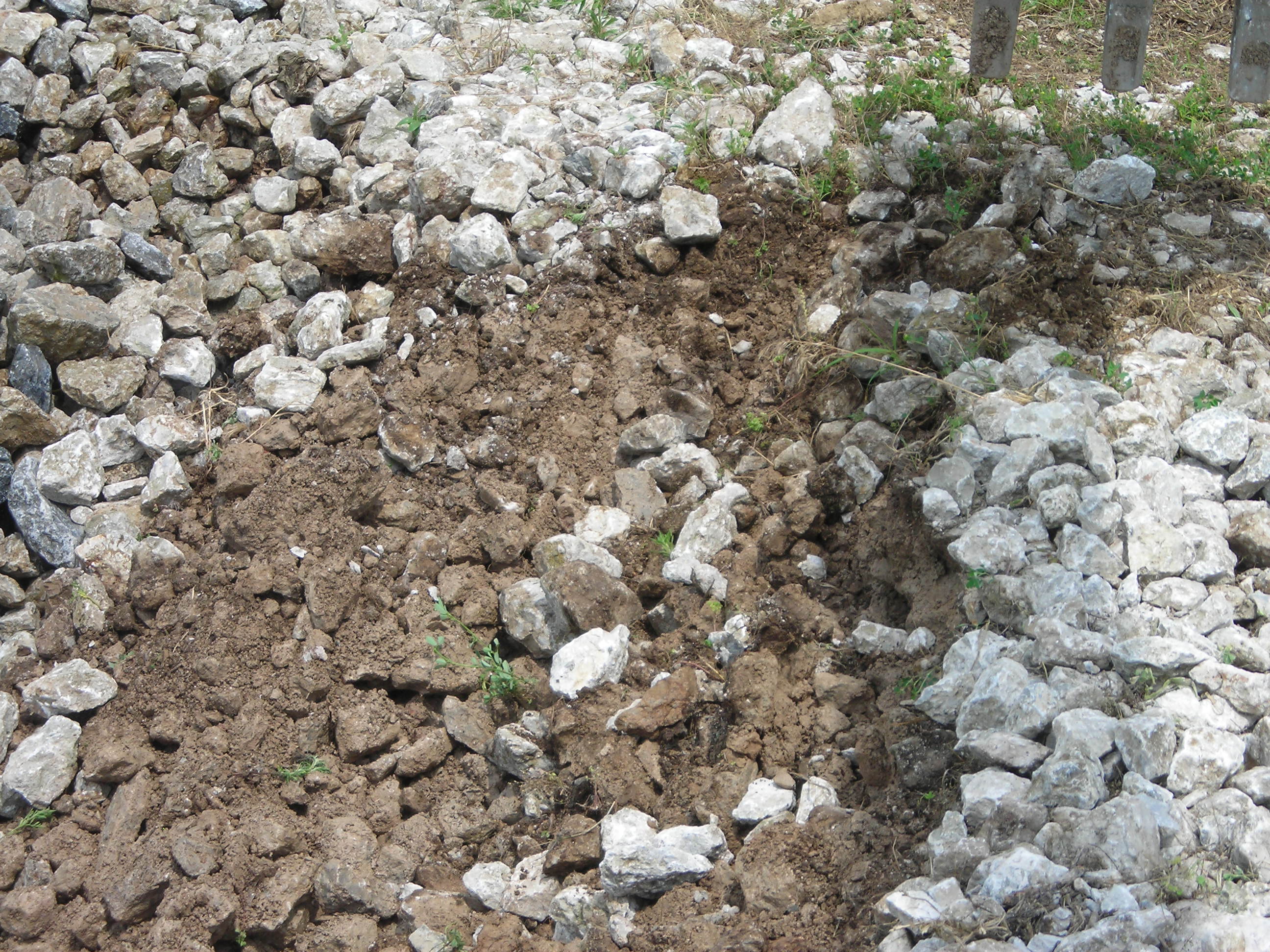

Dirt that was hauled in when new rock was hauled in
Washing dirt to inside the outflow & pumping out with 12" pump

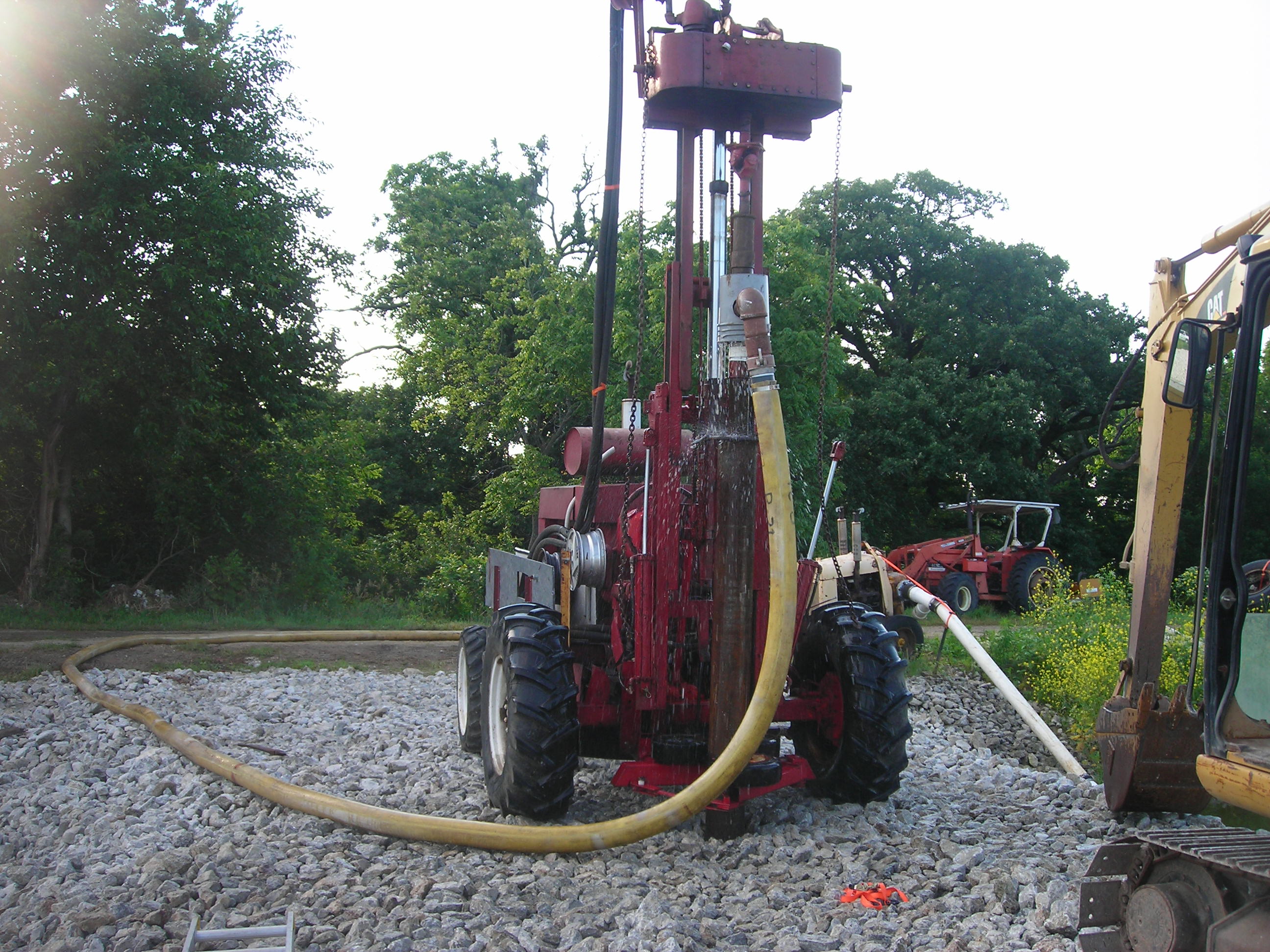

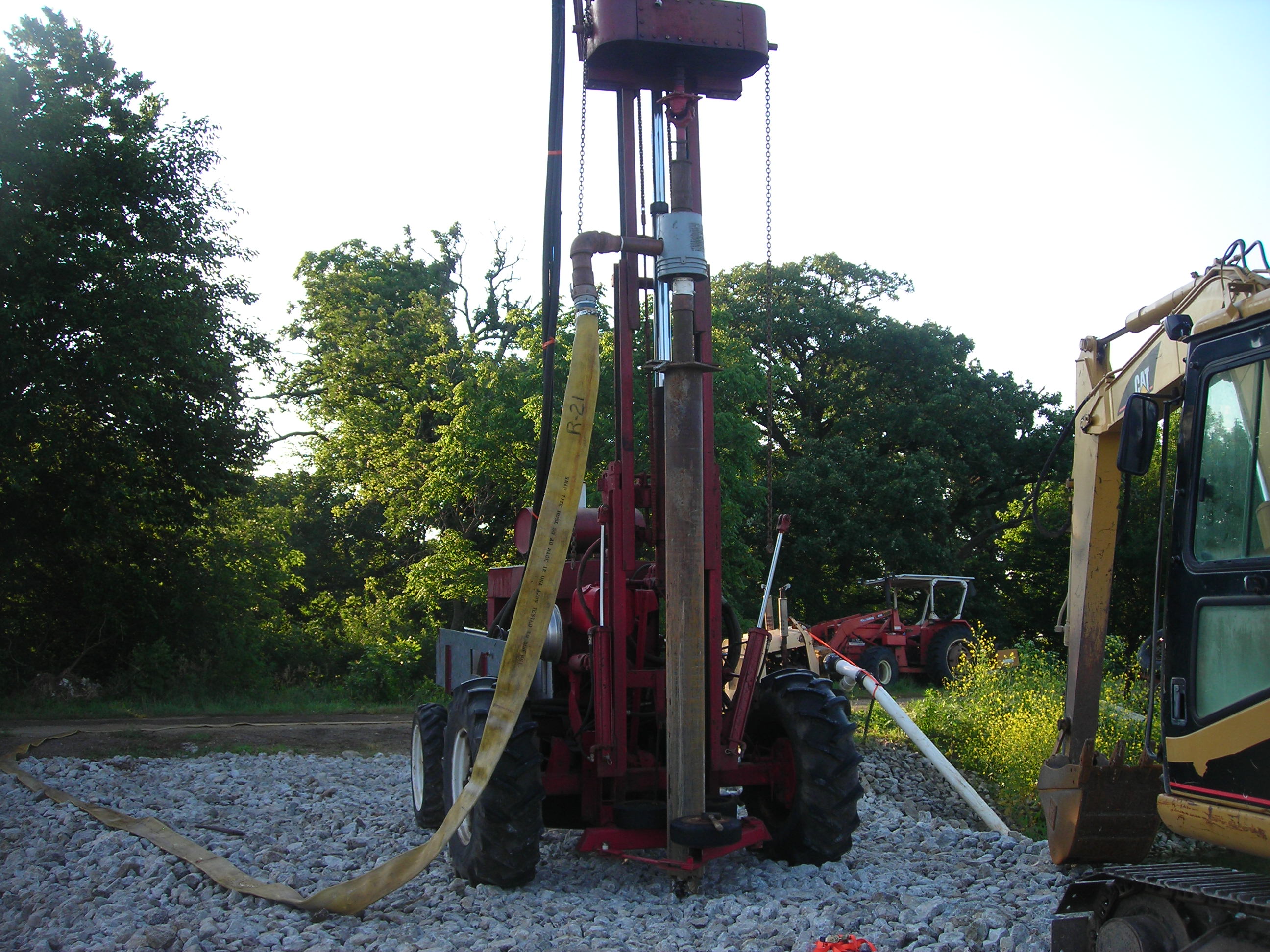

Drill getting ready to drill hole
Drilling into the rock
Drilling to 10ft deep

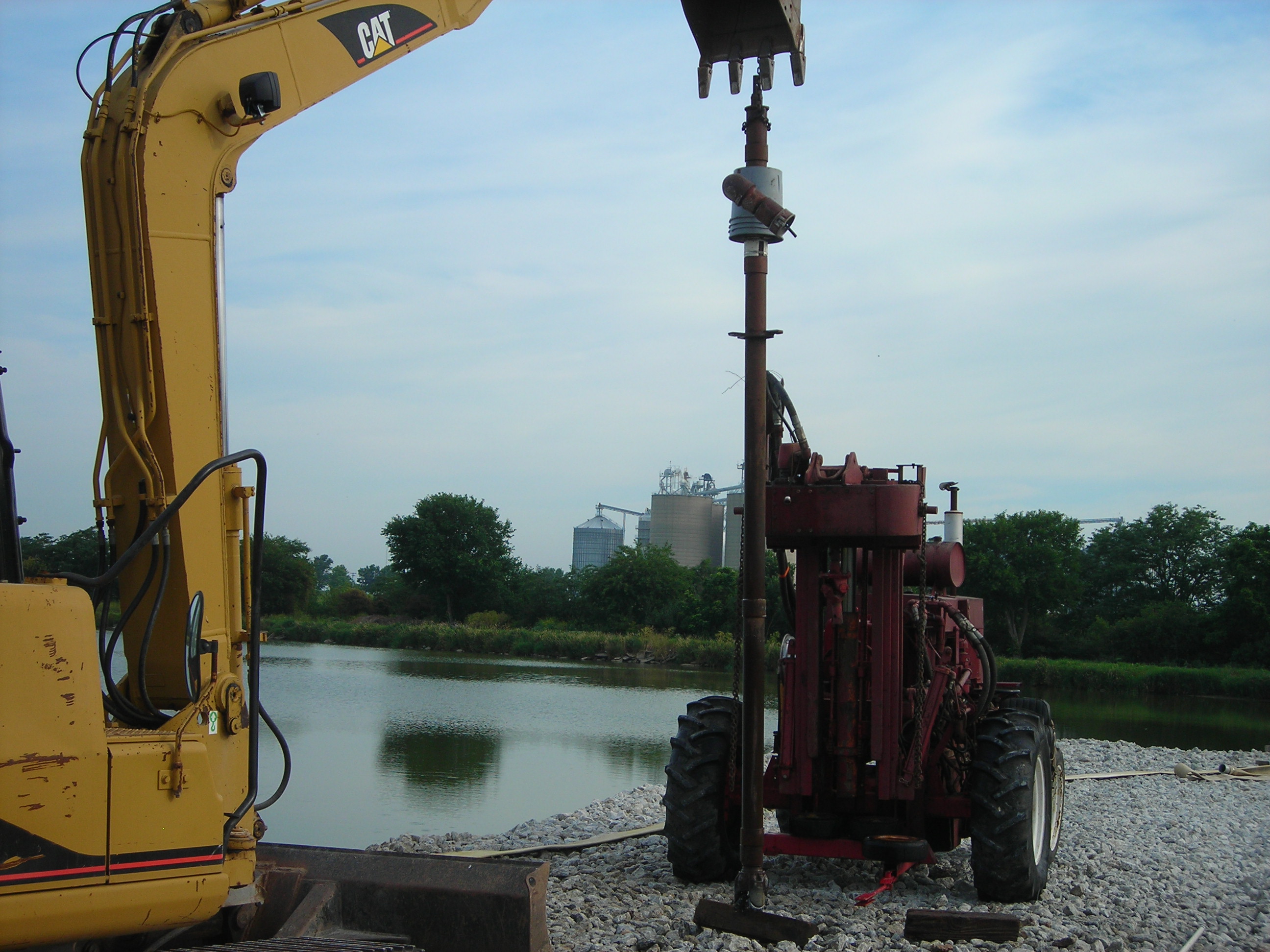

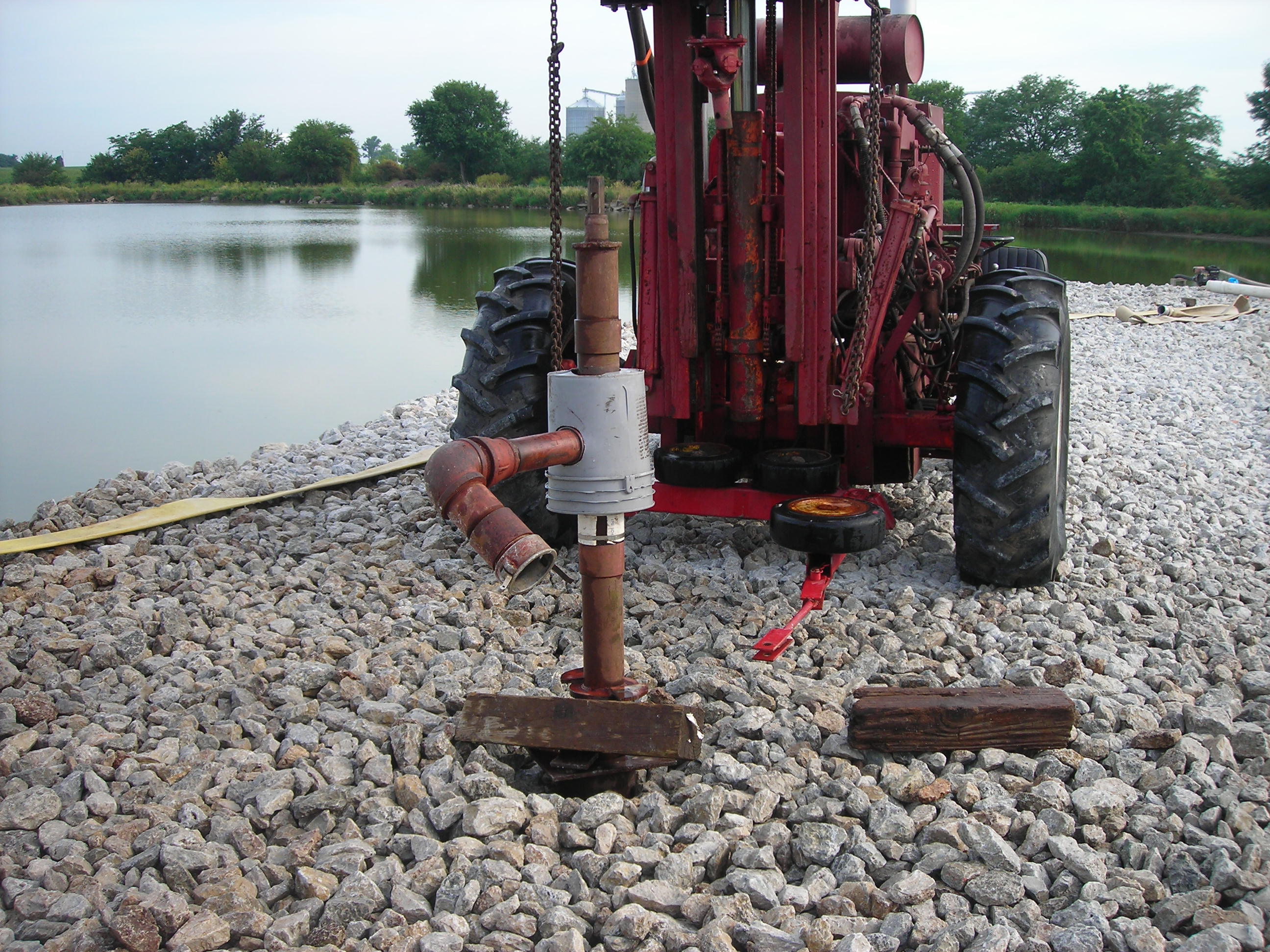

Getting ready to pull out drill bit
Drill bit pulled out

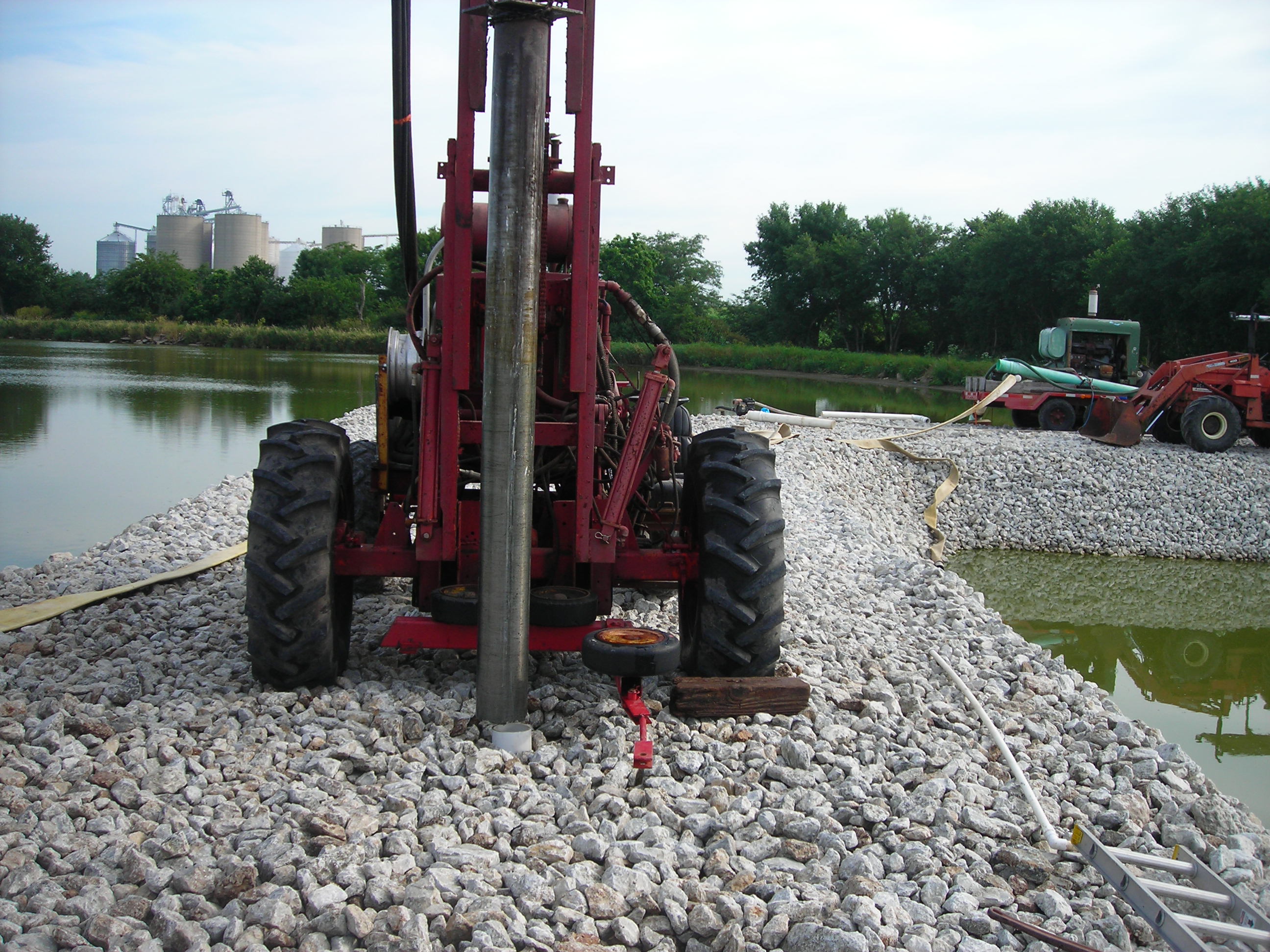

6"pvc pipe inserted 10ft deep

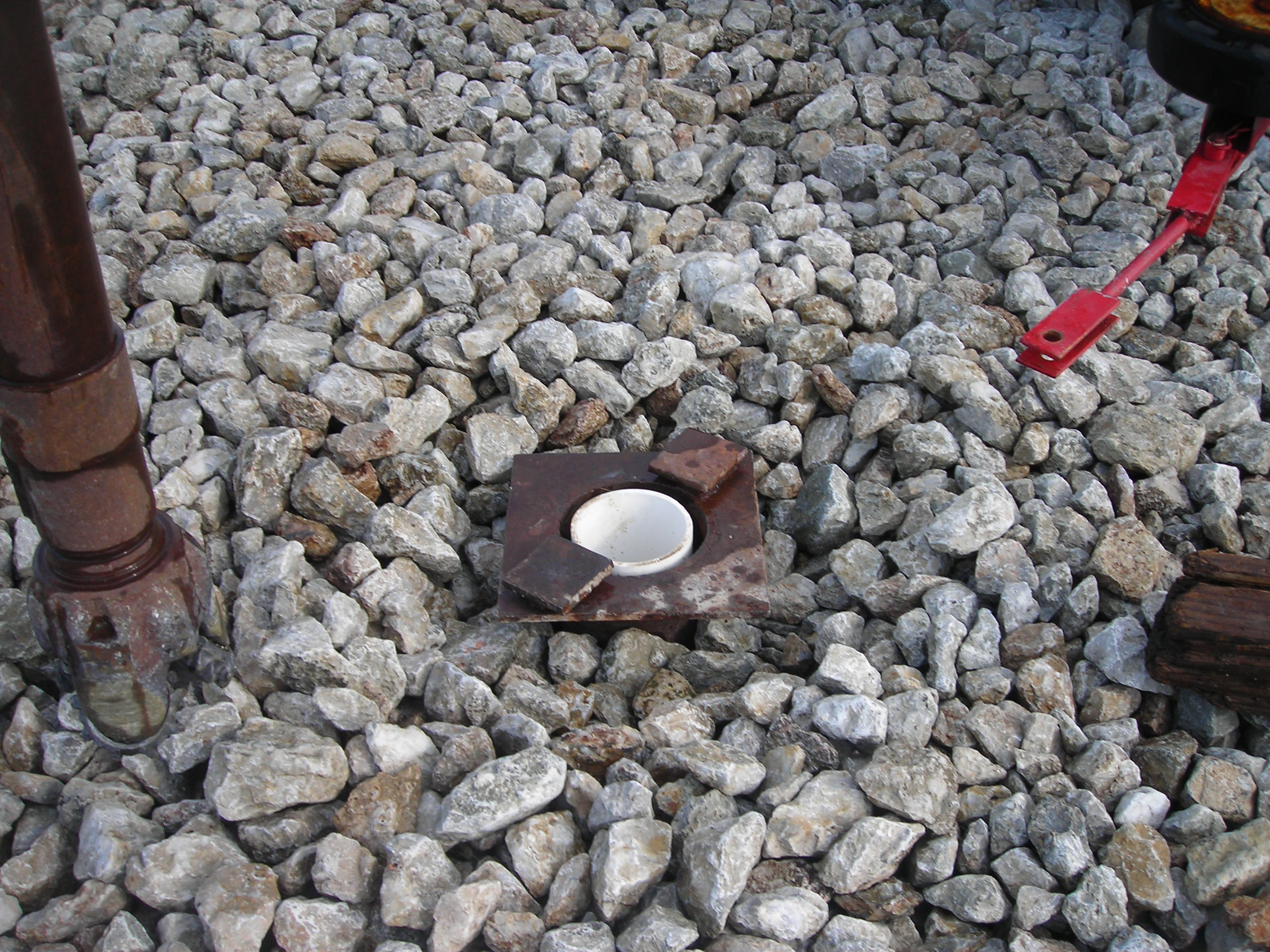

Pulled 8" casing out & left 6" pipe for cleaning

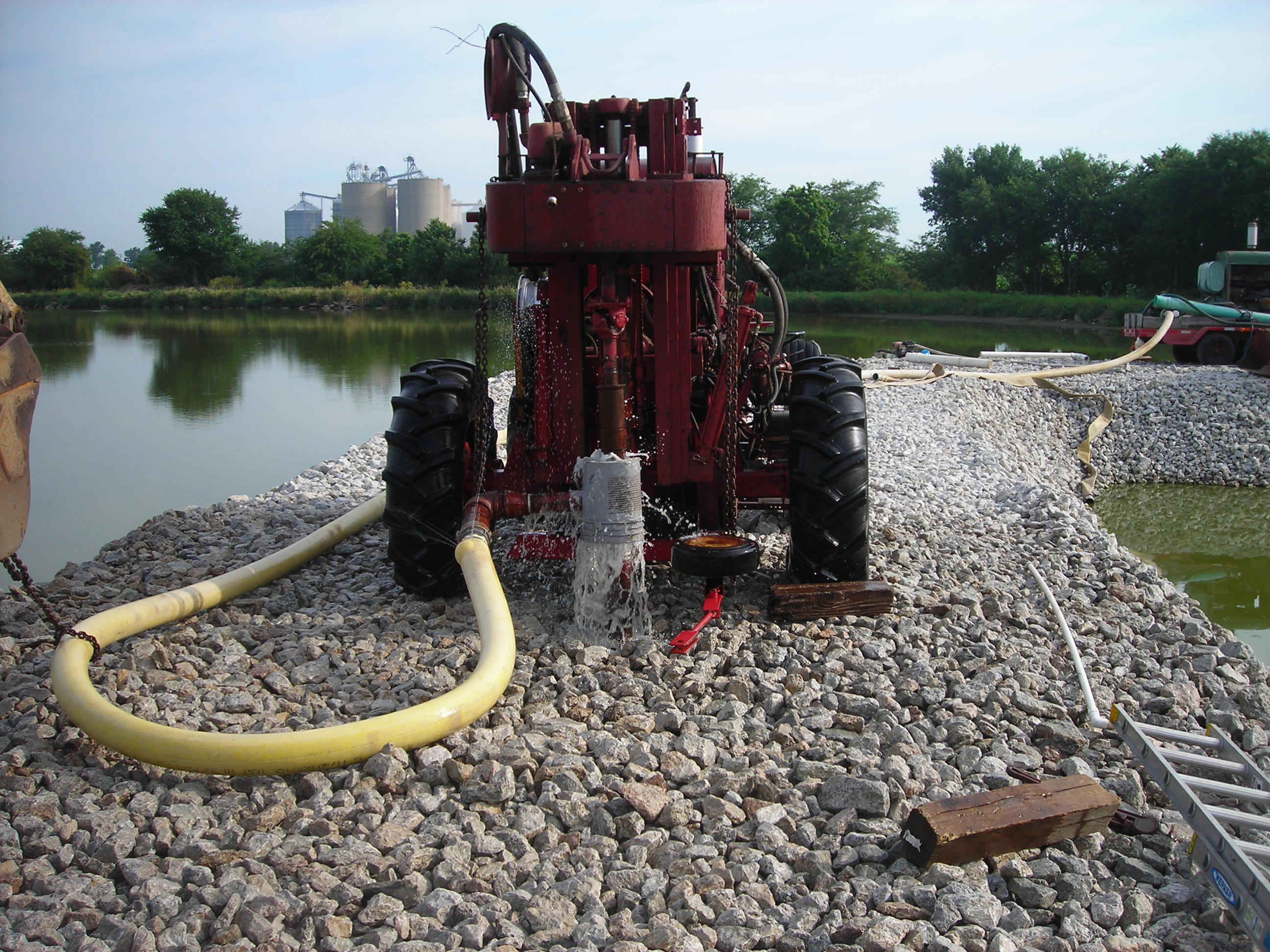

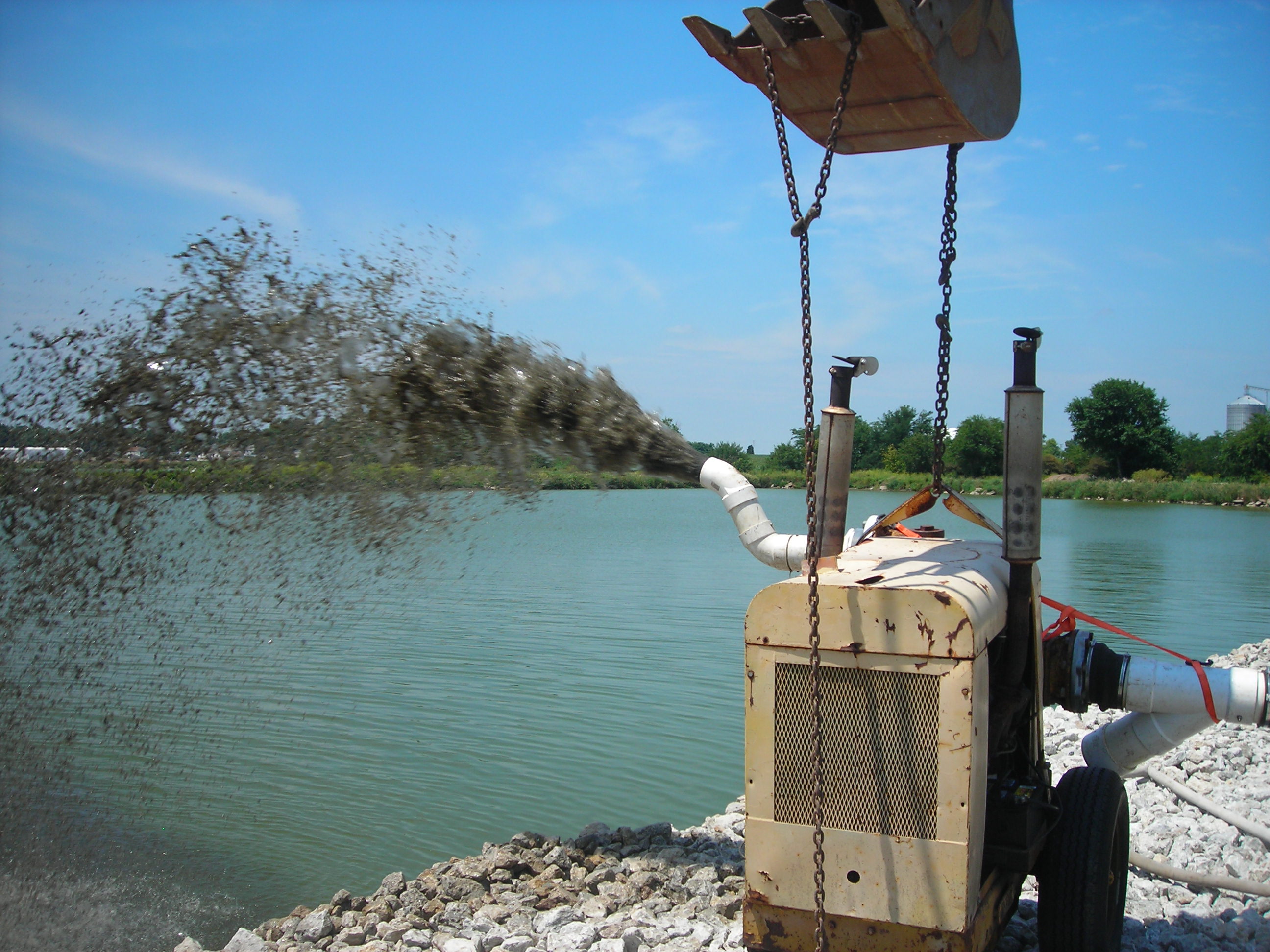

Hooked up 6" trash pump to pull sludge out of bottom of the rock filter
Pumped it out until the water came out "clean"

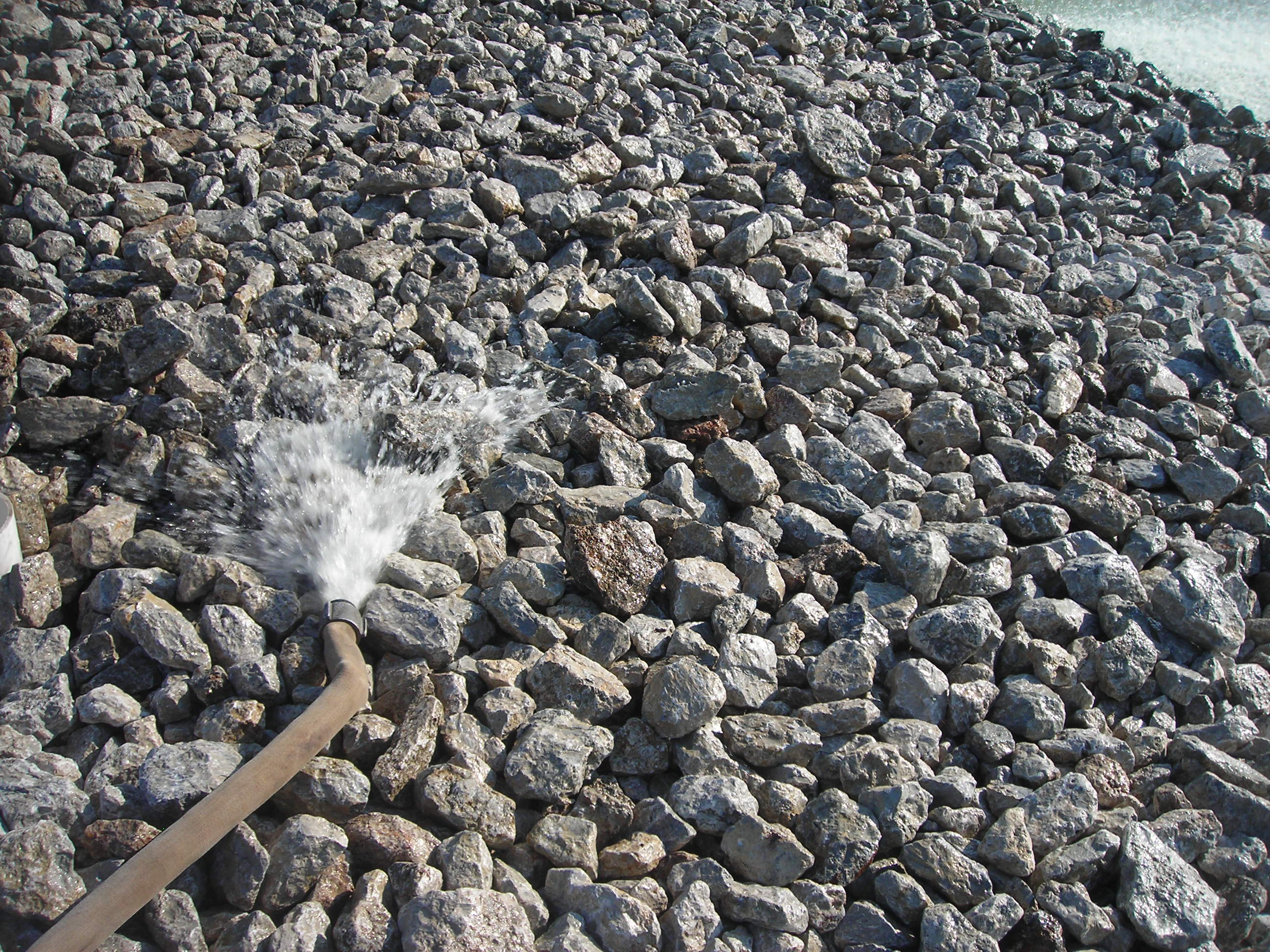

Ran water of the top of the rock to wash the debris away
Hooked up 16" pump to clean sludge out of the outflow
Using 16" & 8" pump to pull water out from the outflow

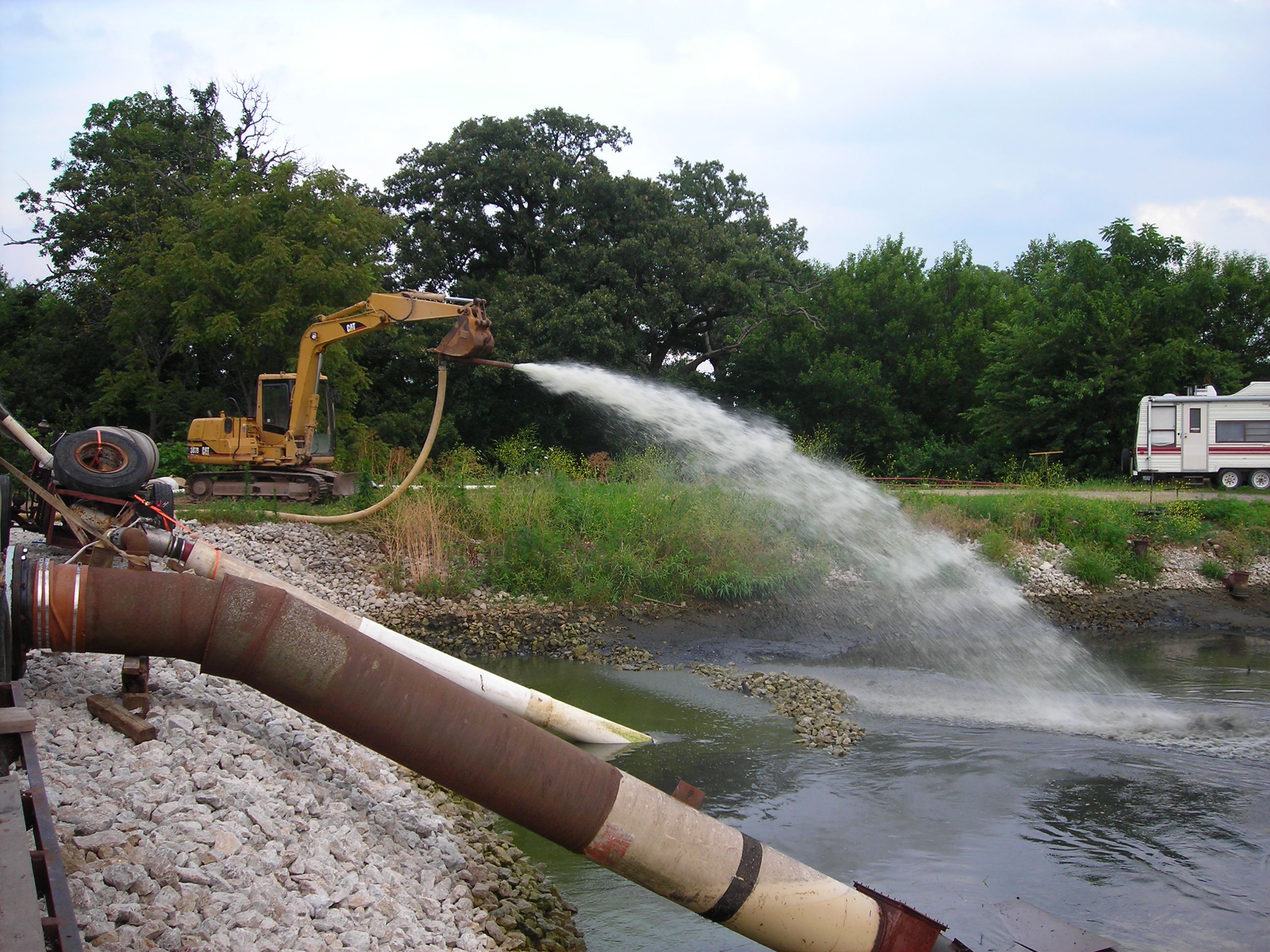

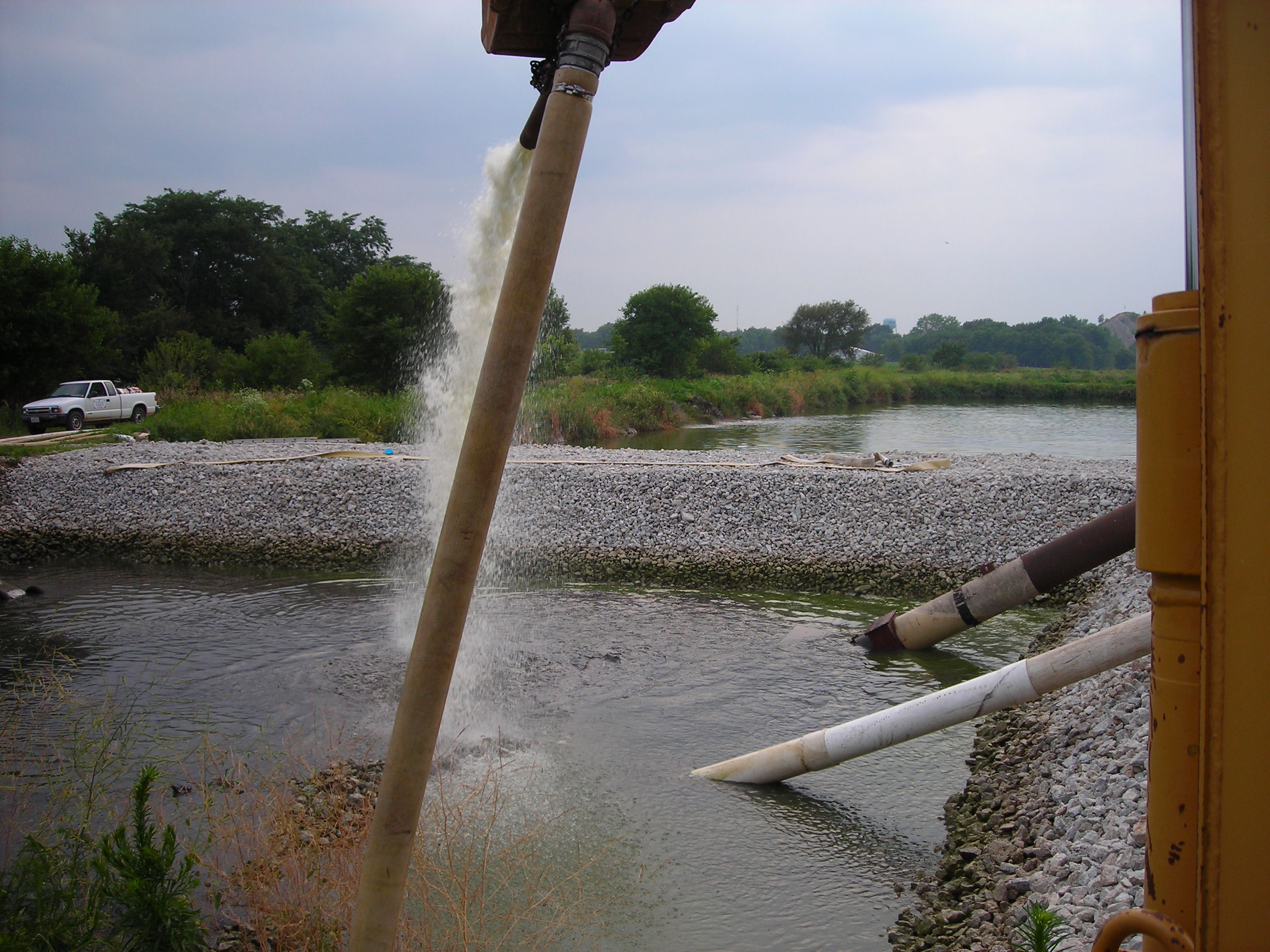

Using a 3" deluge gun to wash sludge out of outflow

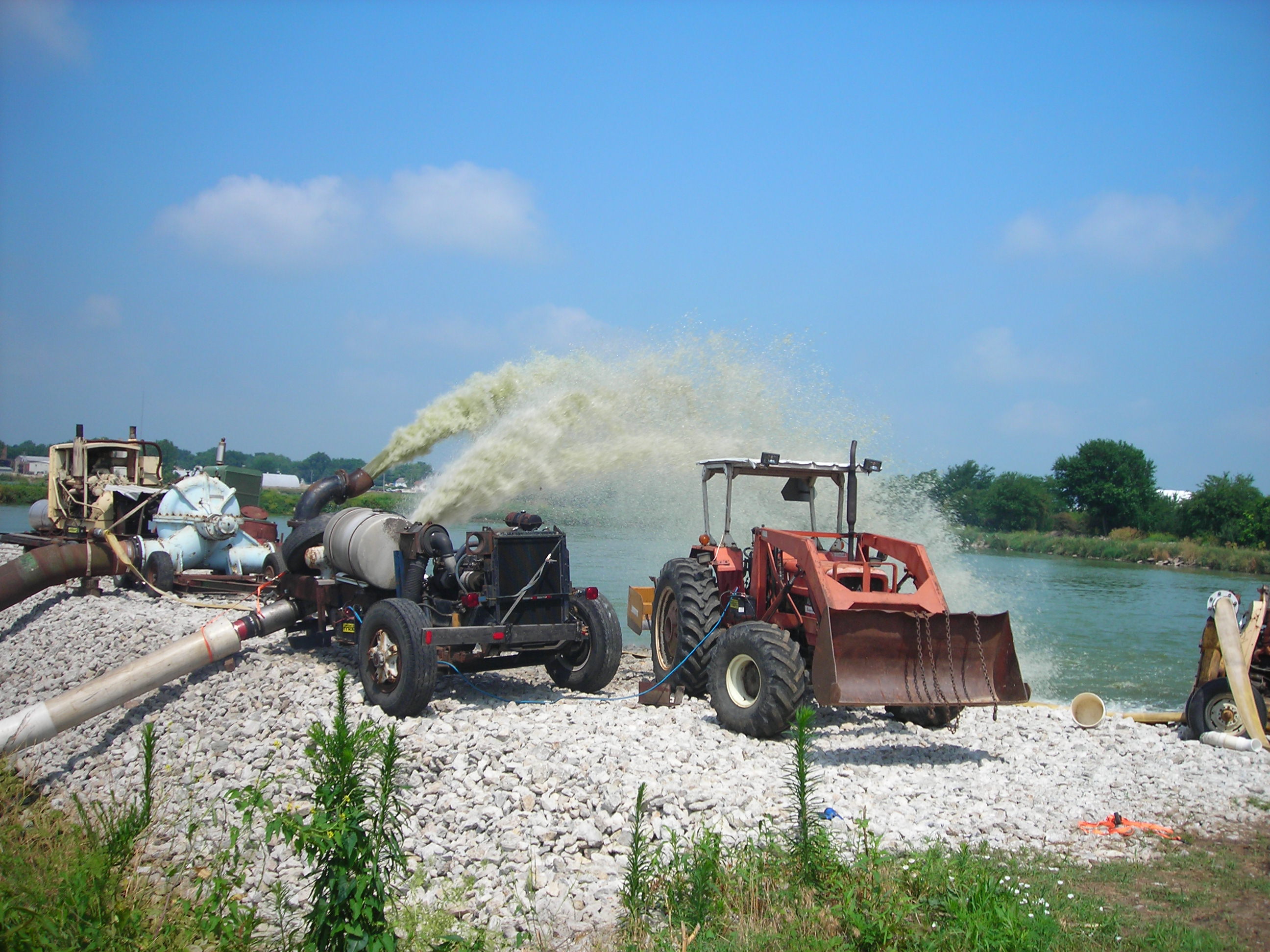

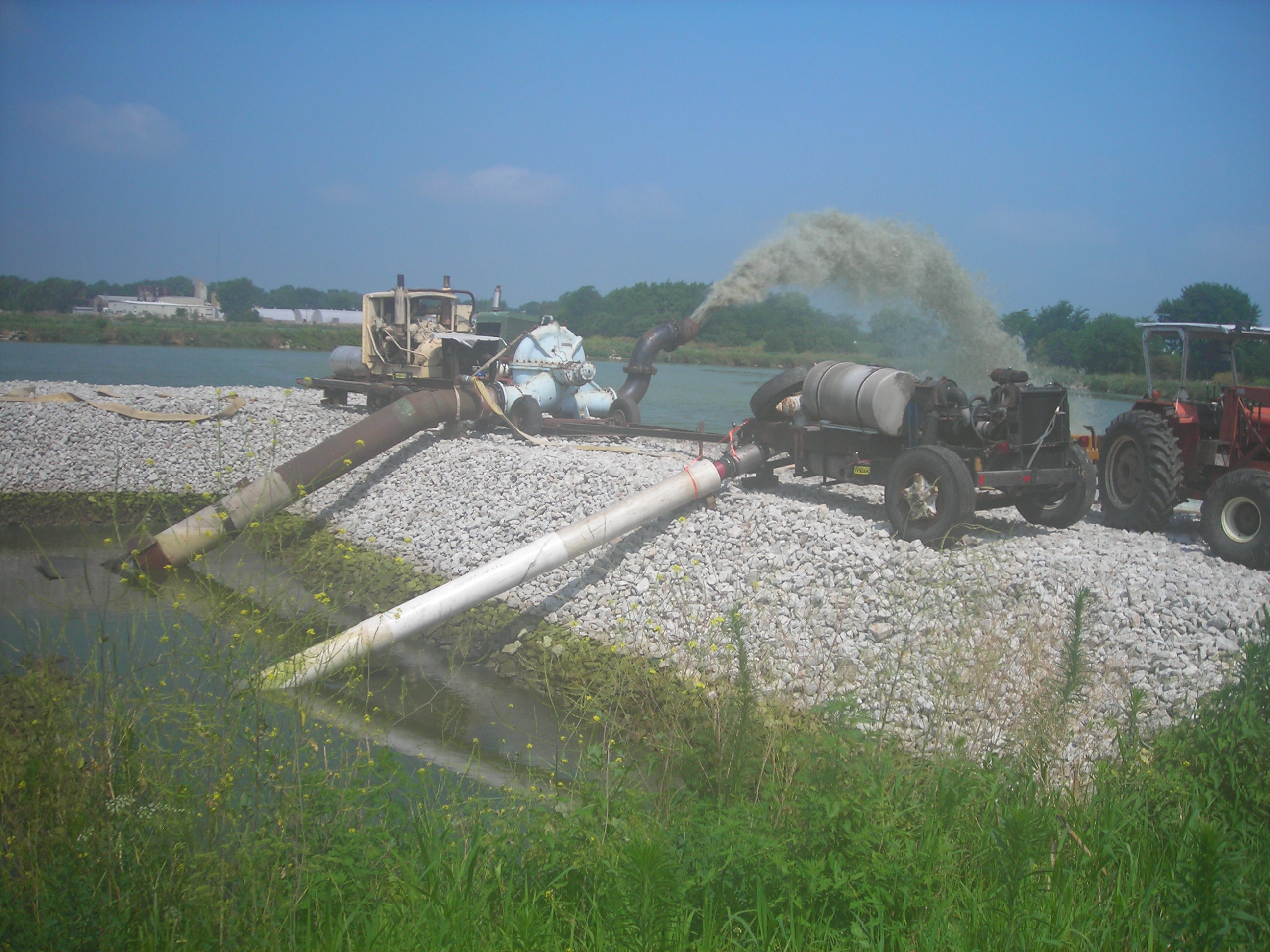

Running 16" 12" & 8" pumps

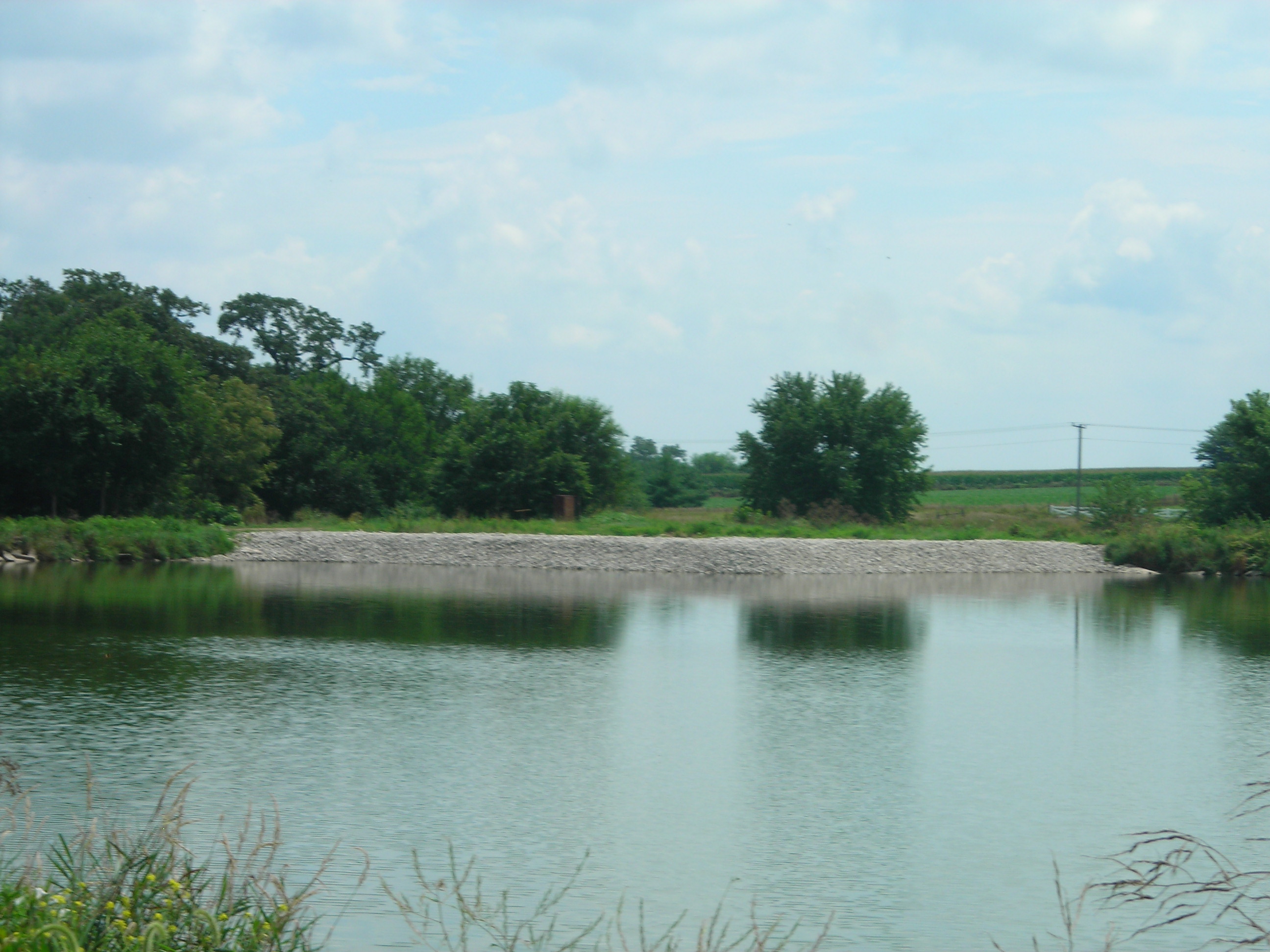

Completed filter

When I took some of my film

to get developed their

machines ruined my

pictures, so unfortunately

I don't have all of the

pictures to show you

that I'd like to.
